The Future of VMware Updates: How to Survive the Broadcom Download Token Shift

The Problem: Why Your VMware Updates Just Broke

If you’re managing a VMware environment and suddenly your updates stopped working—you’re not alone. As of mid-2025, Broadcom has retired public-facing VMware update repositories. That means tools like vCenter, vSphere Lifecycle Manager (vLCM), and SDDC Manager can no longer fetch updates from the old URLs like depot.vmware.com. As a consultant we are starting to see this more and more.

Instead, Broadcom has introduced a token-based authentication system and customer-specific download URLs hosted at dl.broadcom.com. This change affects all major VMware components, including:

vCenter Server 7.x & 8.x
vSphere ESXi 7.x & 8.x
SDDC Manager 4.5.x & 5.x
vLCM, VUM, and more

Step 1: Get Your Download Token

Before you can update anything, you need a Download Token from the Broadcom Support Portal.

Prerequisites:

You must be assigned the Product Administrator role.
Your account must be tied to a Site ID with valid entitlements for VMware Cloud Foundation (VCF) products.

How to Generate the Token:

Log in to the Broadcom Support Portal.

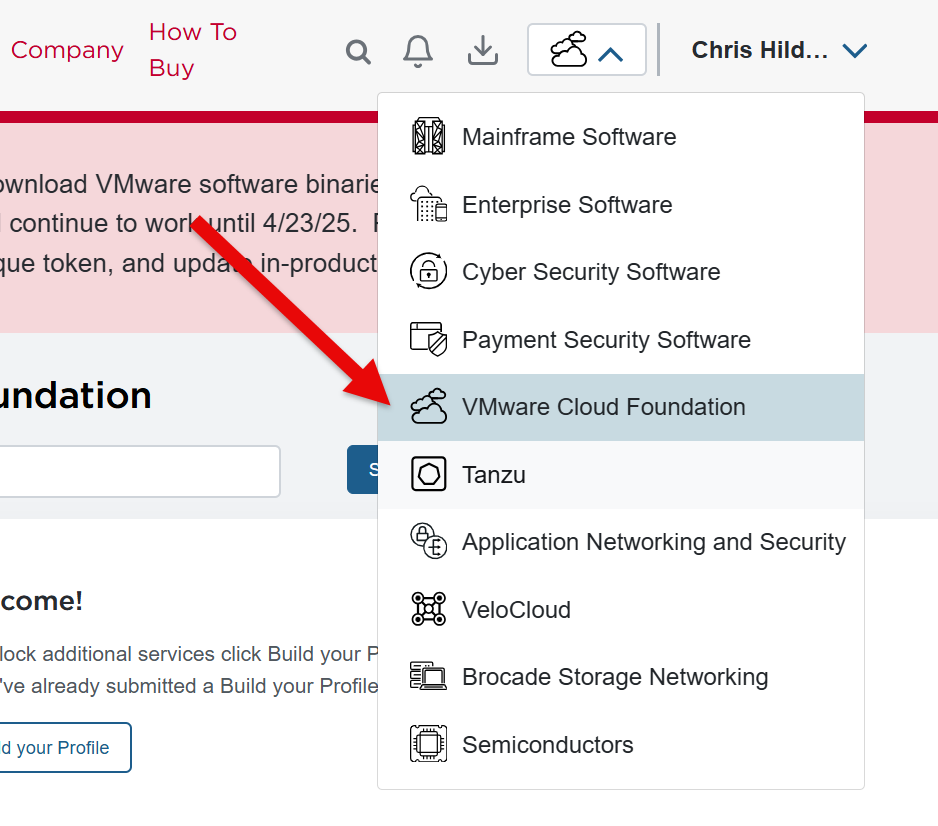

Select VMware Cloud Foundation from the dropdown next to your username.
Navigate to My Dashboard.

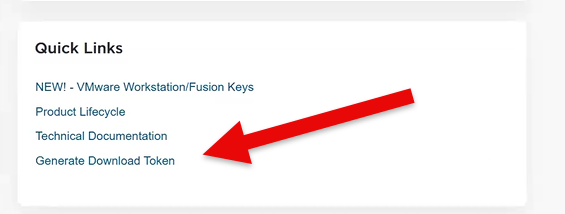

In the Quick Links section, (If you have rights it will look like this):

(If you do not have the “Portal Administrator” role it will look like):

click Generate Download Token Link.
Choose your Site ID and click Generate.

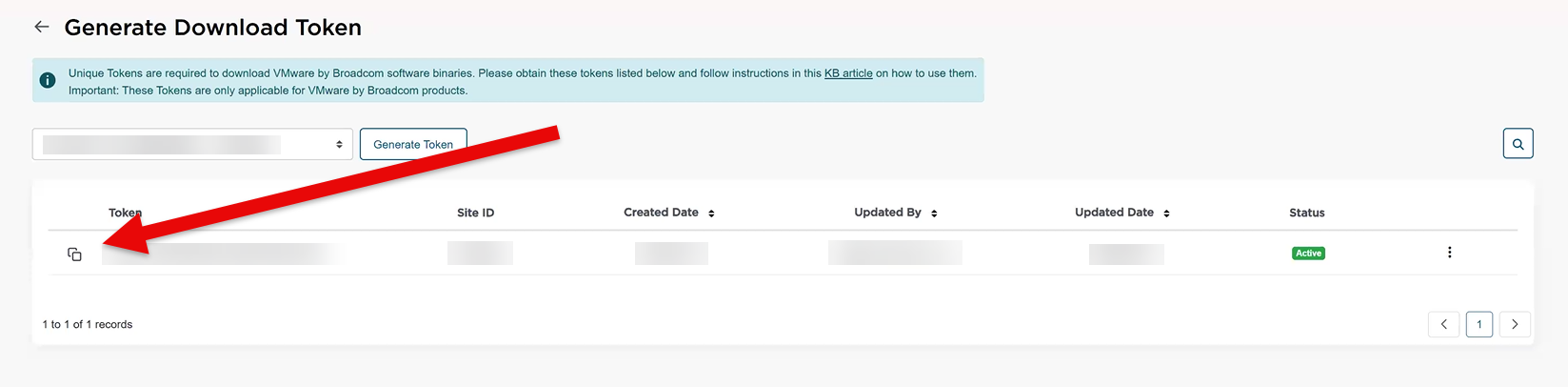

Copy the code to clipboard and store for later use.

⚠️ Note: Tokens may take a few minutes to become active. If used too soon, you’ll get a “Not Entitled” error.

Step 2: Update Your Systems with the Script

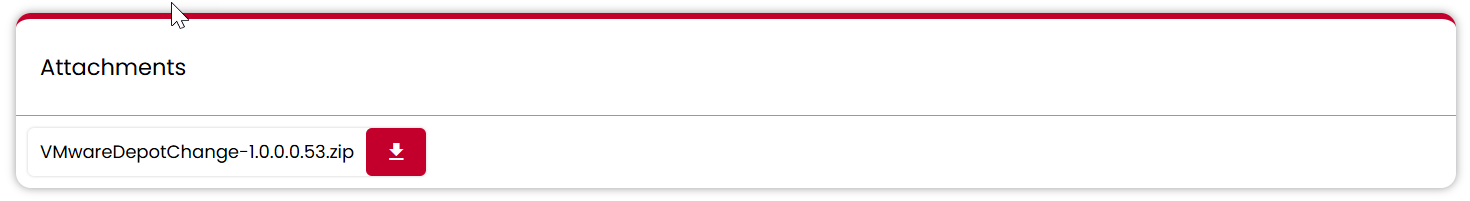

Broadcom provides a PowerShell script to automate the update of your depot configurations: VMwareDepotChange.ps1. The script is found at the bottom of the page of here. Download and Extract the zip file.

Requirements:

PowerShell 7.2+

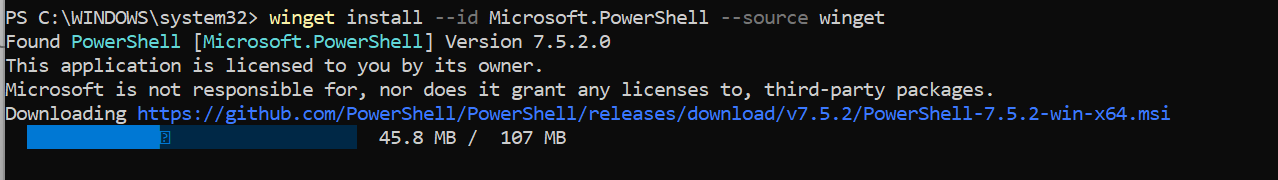

- New Install: winget install --id Microsoft.PowerShell --source winget
- Update: winget upgrade --id Microsoft.PowerShell
PowerCLI 13.3+
- New Install: Install-Module -Name VMware.PowerCLI -Scope CurrentUser
- Update: Update-Module -Name VMware.PowerCLI -Scope CurrentUser
Network access to:
- Your vCenter or SDDC Manager
- dl.broadcom.com
Untrusted vCenter certificate:
Set-PowerCLIConfiguration -InvalidCertificateAction Ignore -Confirm:$false
Multi-vCenter Mode:
Set-PowerCLIConfiguration -DefaultVIServerMode Multiple
Execution Policy (If you have not bypassed Execution policy and want to bypass for this process only)
Set-ExecutionPolicy -ExecutionPolicy Bypass -Scope Process

Script Modes:

Interactive Mode: Menu-driven, ideal for one-off updates.
Non-Interactive Mode: Uses JSON input files for automation.

Interactive Mode:

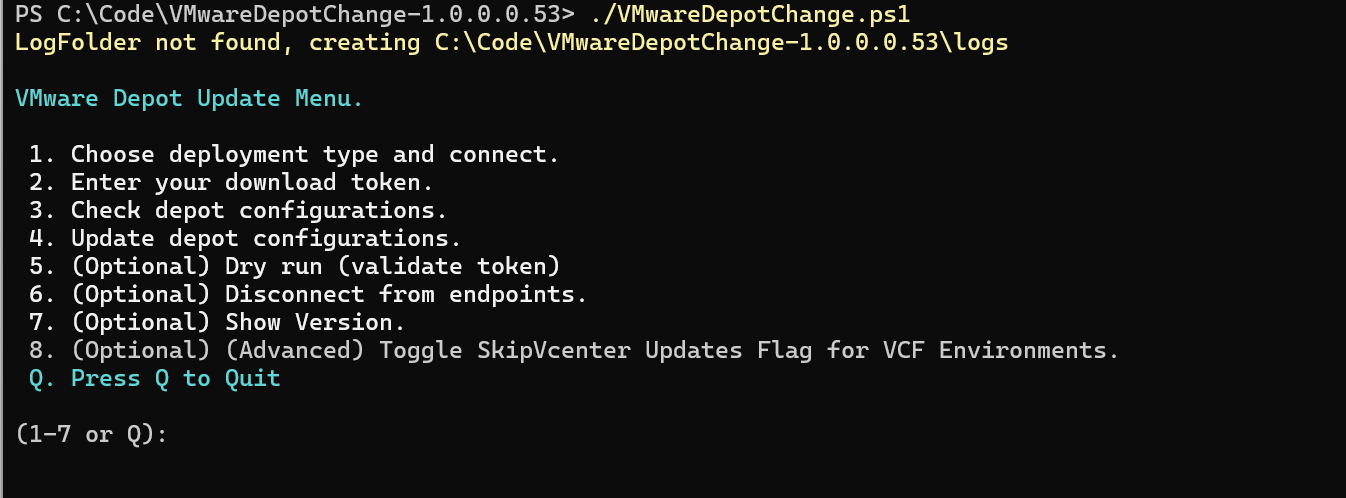

Running the update script, you can open Powershell 7 window and change directory to extracted zip folder location.

Connect

Next Select “1. Choose deployment type and connect.” by pressing “1”.
Following the promts and filling out the info in the questions in the connect portion, like below and press any key to continue:

Download Token

Now that we have connected lets enter our Download token. Choose option “2 . Enter your download token.” With a “2” and follow the steps to enter your download token like below and press any key following validation:

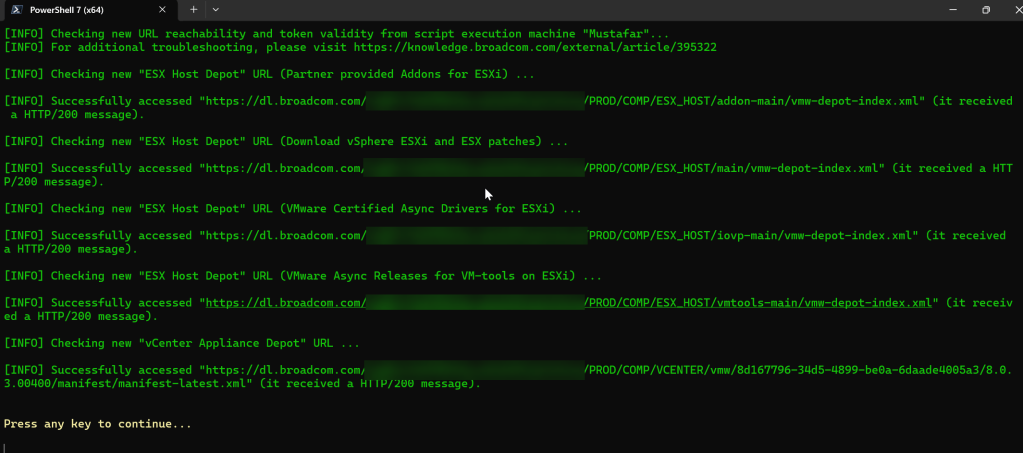

Dry Run

Next we are going to run the Dry Run to validate all the entered data is correct. “5. (Optional) Dry Run (validate token)” enter “5” to start this, and press any key once test is complete.

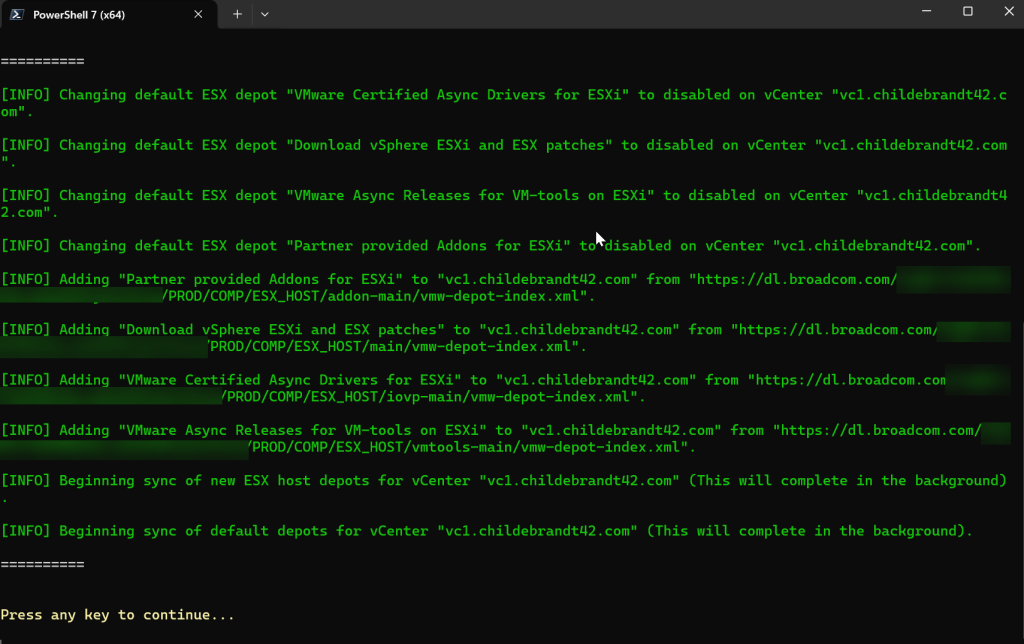

Update

Now that we have a successful test, lets do this for real. Lets select “4 Update depot configurations.” by entering “4” and pressing any key following script running.

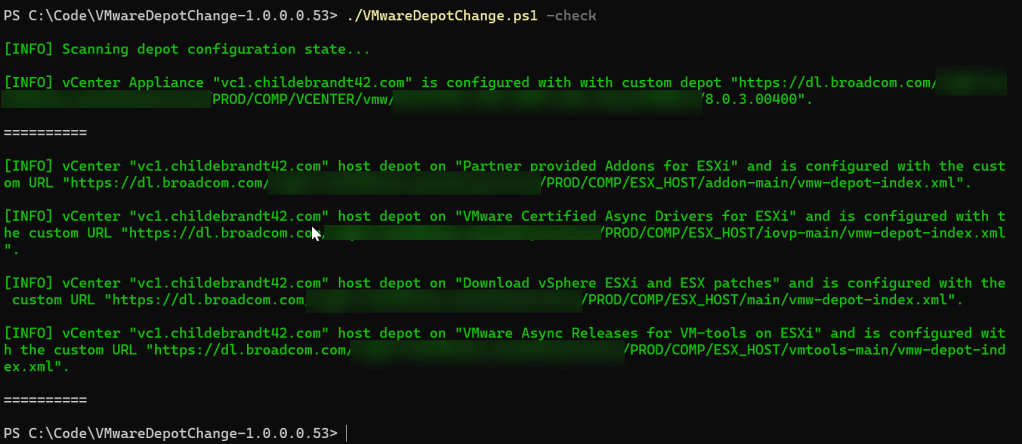

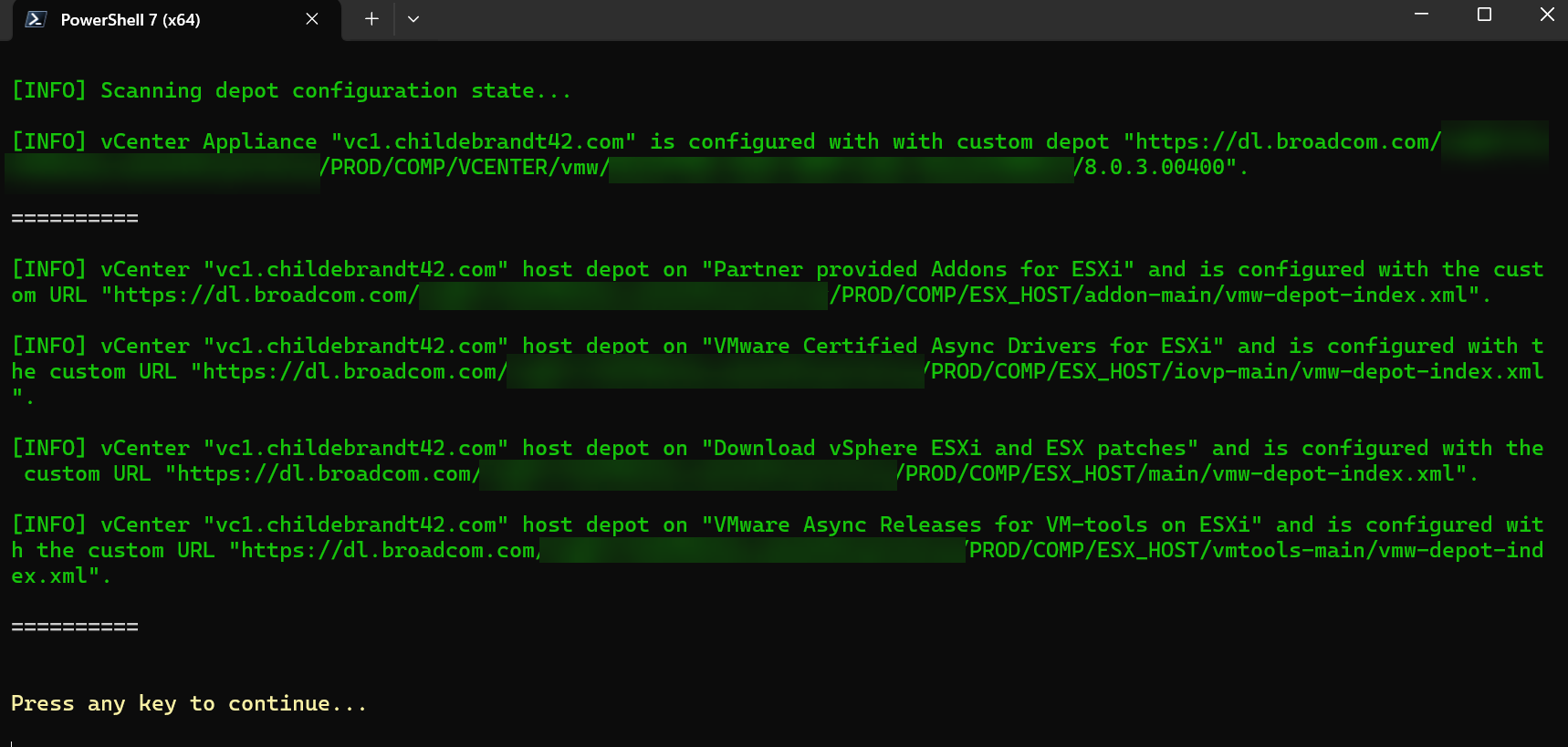

Check Configuration

Now that you have updated your configuration we can run the “3. Check depot configurations” by entering “3” and validating all the URLs have been updated with Boadcom Token in them and pressing any key to proceed.

Disconnect

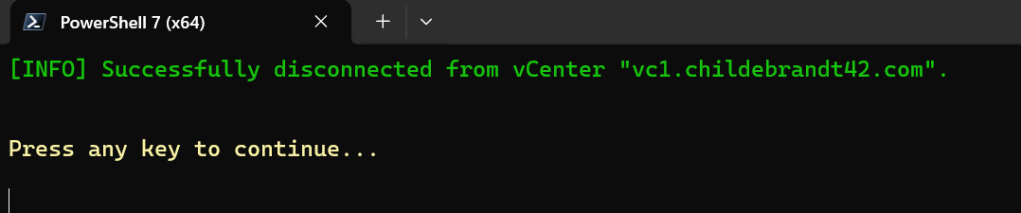

Now that you have validated your configuration we can run the “6. (Optional) Disconnect from endpoints.” by entering “6” And hit any key and close the powershell window.

Non-Interactive Mode:

Sample JSON for vCenter:

For our example we are going to be using the “sample-vcenters-nocredentials.json” file in the zip you downloaded from here above in the blog.

In the below Code, you can edit the vcenter names and it will promt you for credentials when it connects to each vCenter.

[
  {
    "VcenterFqdn" : "vcenter01.example.com"
  },
  {
    "VcenterFqdn" : "vcenter02.example.com"
  }
]

I updated the JSON to look like below removing the second vCenter and entered my vCenter FQDN.

[
  {
    "VcenterFqdn" : "vc1.childebrandt42.com"
  }
]

Run the Script

Before running the scrit for real, use the -DryRun function in the commandlet to test the token and info.

Connecting to vCenter

Lets connect to vCenter by running
./VMwareDepotChange.ps1 -Connect -Endpoint vCenter -JsonInput childebrandt42.json
Following the onscreen prompts to enter your vCenter credentials.
